UTB-1

Universal Terminal Board

UTB-1
UTB-1 UTB-1 layout

  • Stock Number:

  • 100-7593

  • Budgetary Pricing:

  • $41.00 / 001 - 009
  • $39.36 / 010 - 024
  • $37.79 / 025 - 049
  • $36.31 / 050 - 099
  • Contact us for More Quantity Discounts

  • Typical Lead-Time:

  • Stock - 2wks
  • get quote

DESCRIPTION

Frequently the input and/or output signals of many computer peripheral boards must be electronically isolated, scaled or conditioned in some way before the device can be used in any practical real-world application. In addition, many board manufactures use IDC type connectors which require adding a screw-terminal block for transition to field wiring.

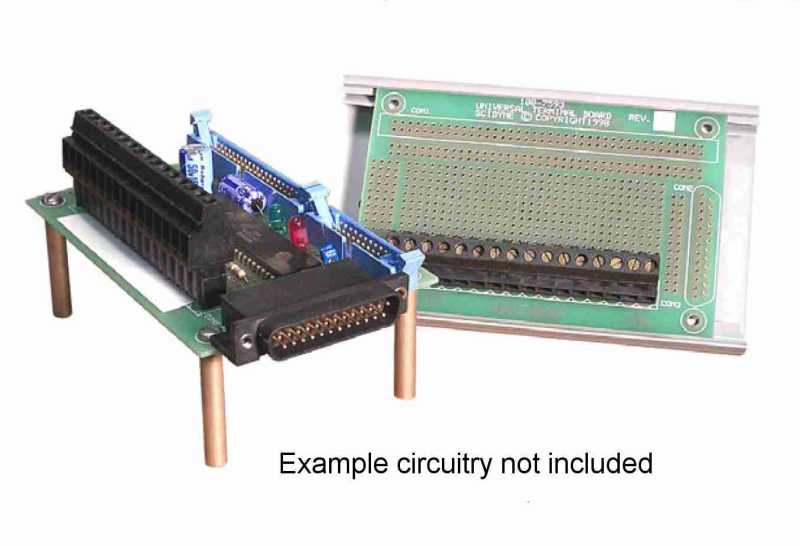

The UTB-1 has been designed to address both of these issues in one easy-to-apply product. A generous solder-pad prototyping area (360+ 0.036" dia. holes on 0.1" centers) allows the user to construct intermediate circuitry. Various combinations of IDC headers can be installed using the assigned dual row of pads. A 16-position removable terminal block accepts field wire sizes between 22-12AWG. The screws are touch-safe but may be easily probed during field testing.

FEATURES

  • 16 Position Removable terminal block accepts 12-22AWG
  • Solder-pad/Wire-Wrap prototyping area for easy custom circuitry construction
  • Accepts multiple and various sized IDC headers
  • Pad layout and wire access for DB25 connector
  • Compact size (3"W x 4.5"L) Mounts on SNAPTRACK, Din Rail, or standoffs
  • Compatible with computer products from any manufacturer

DOCUMENTATION

SPECIFICATIONS

Power Requirement:None
Connections:One 16-position removable screw-terminal connector. Accepts 22-12AWG size wire. Through holes and wire access provided to accommodate user-supplied IDC headers up to 80 positions (2 x 40). Any combination of smaller IDC headers can be installed side-by-side provided the overall 80 positions limit is not exceeded. Through holes and wire access provided for one DB connector up to 25 positions.

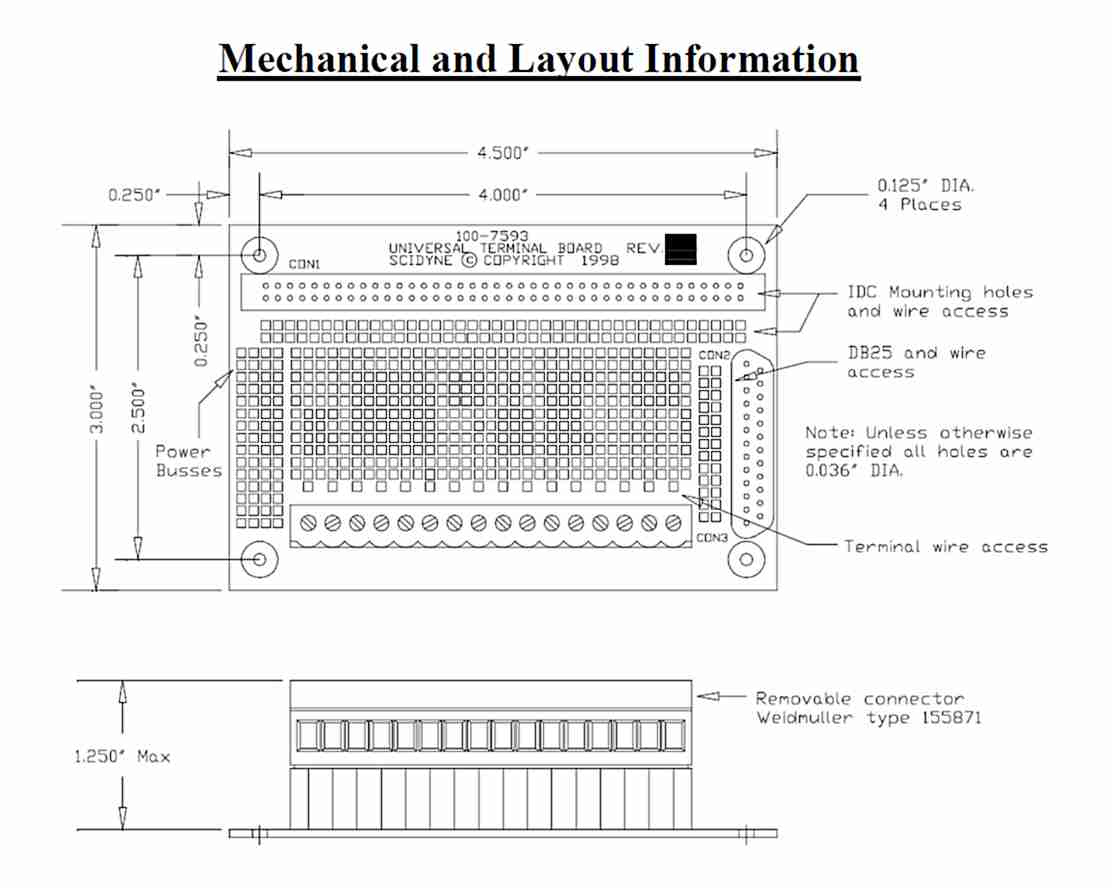

Dimensions:3.00"W x 4.50"L x 1.250"H
Environmental:Environmental: Operating temp.: -20°C to 65°C
Non-condensing relative humidity: 5% to 95%
CA Residents: Warning - Prop 65 Info
Product Origin:Designed, Engineered, and Assembled in U.S.A. by SCIDYNE Corporation using domestic and foreign components
